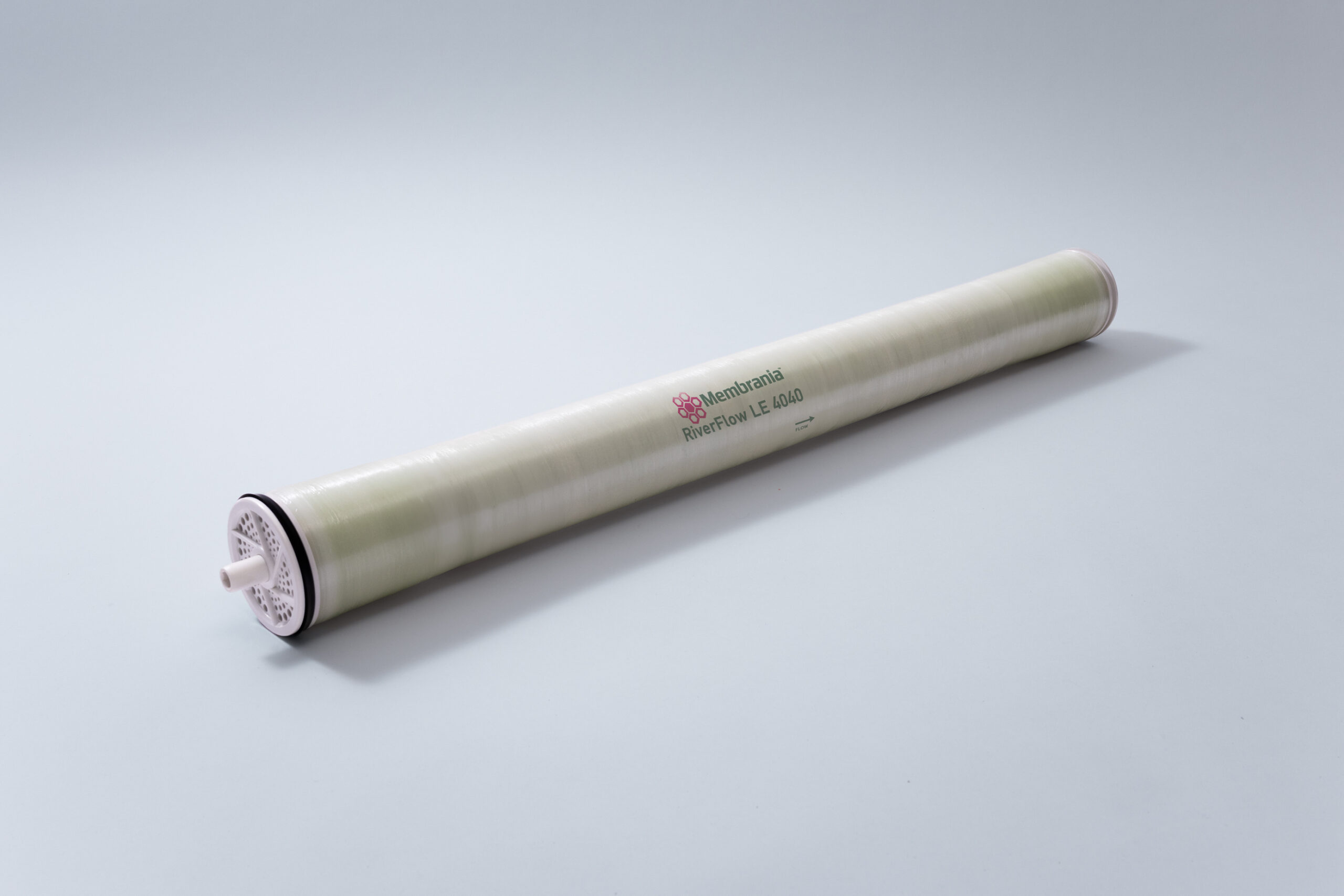

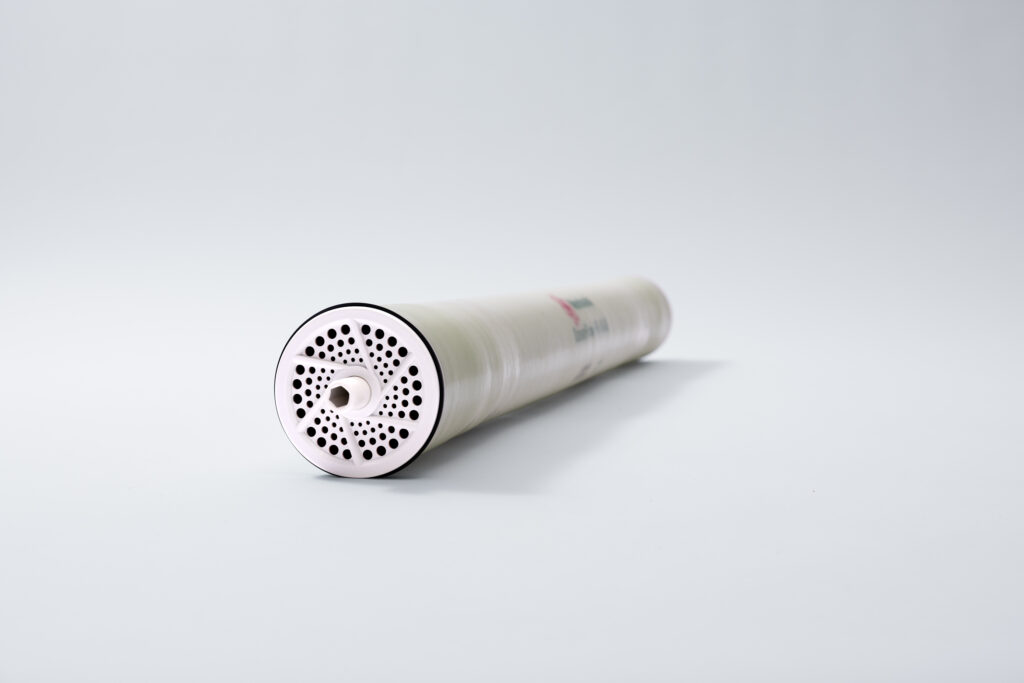

Membrania RiverFlow LE 4040
The Membrania RiverFlow LE series of brackish water reverse osmosis (RO) membranes is engineered to meet the latest standards in performance and quality, standing shoulder to shoulder with the leading solutions on the market. Offered in a variety of spiral-wound configurations, RiverFlow elements are ideal for both new systems and retrofit projects, ensuring seamless integration across a wide range of applications.
SPECIFICATIONS:
| Permeate Flow: | 2500 gpd / 9,5 m³/day |
| Membrane Area: | 92 ft² / 8,5 m² |
| Salt Rejection: | 99,5% (99,2% minimum) |
| Feed Spacer: | 28 mil / 0,864 mm |
| Membrane Chemistry: | Thin-Film Composite Polyamide |
| Construction: | Spiral-Wound Fiberglass Outerwrap |
OPERATING PARAMETERS:
| Maximum Operating Pressure: | 10,3 bar (150 psi) |
| Maximum Operating Temperature: | 45 °C (113 °F) |
| Cleaning pH Range: | 1.0 – 12.0 |
| Chlorine Tolerance: | < 0.1 ppm |
| Maximum Pressure Drop: | 1 bar (15 psi) per element |
| Maximum SDI15: | 5.0 |
| Maximum Turbidity: | 1 NTU |
