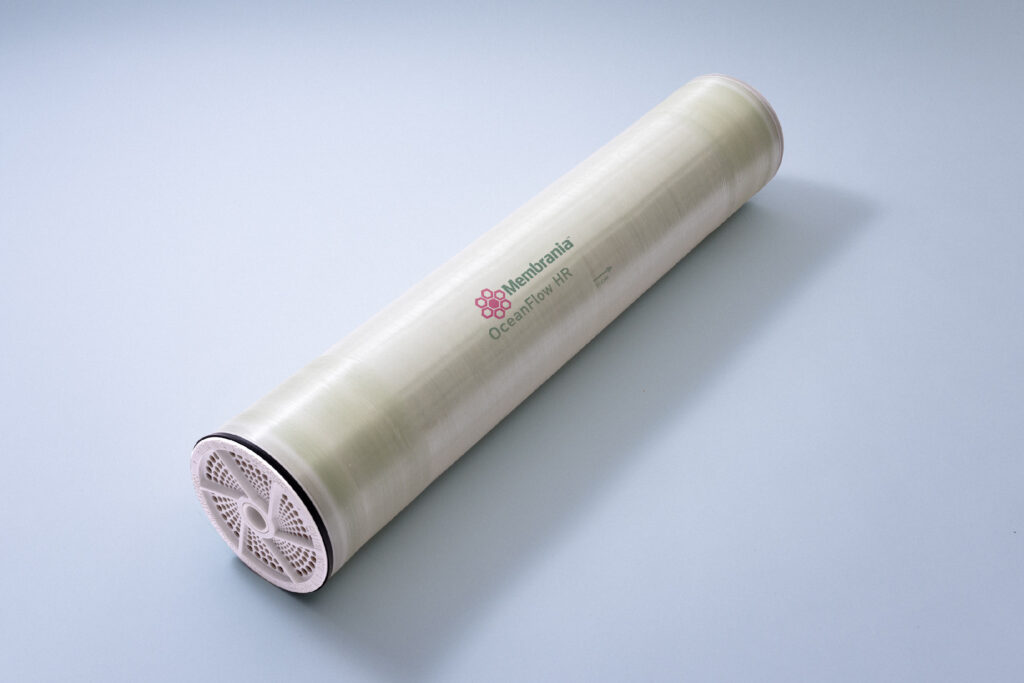

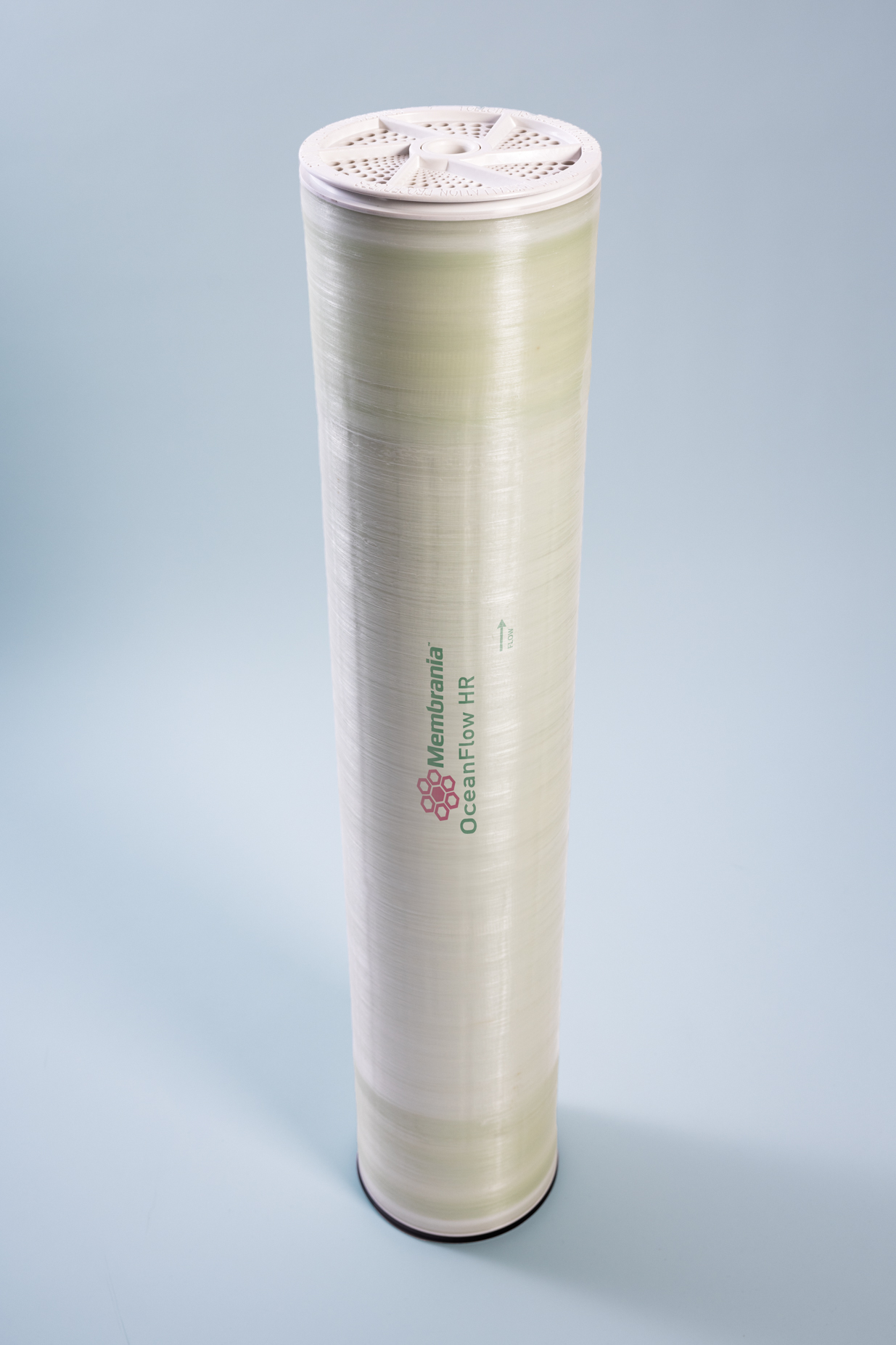

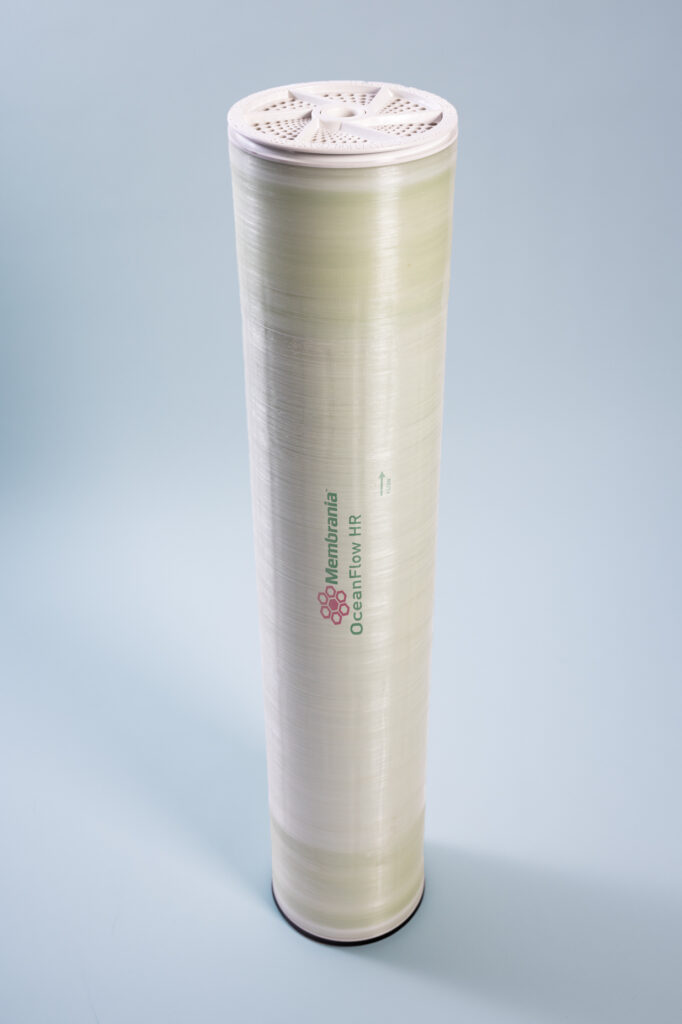

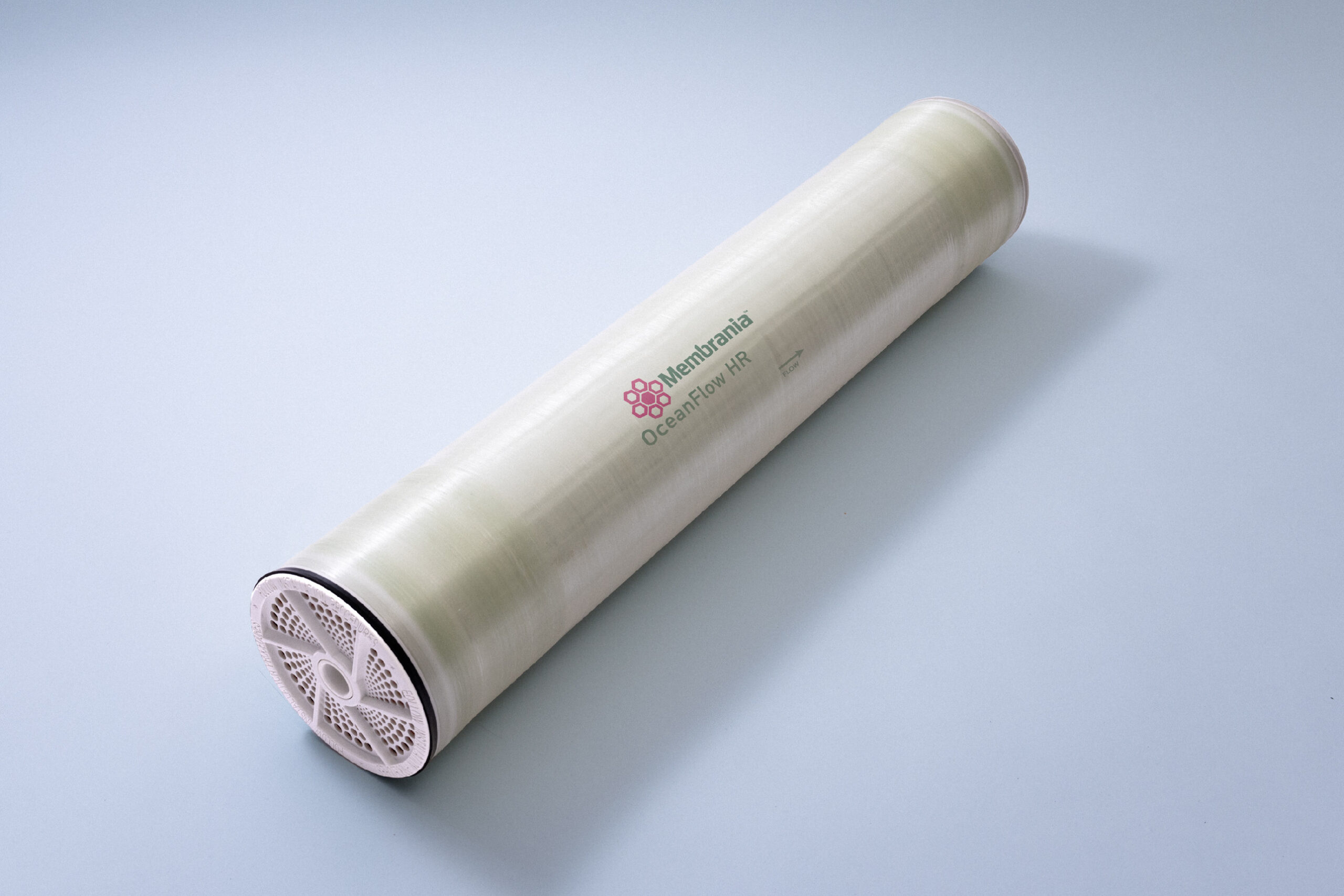

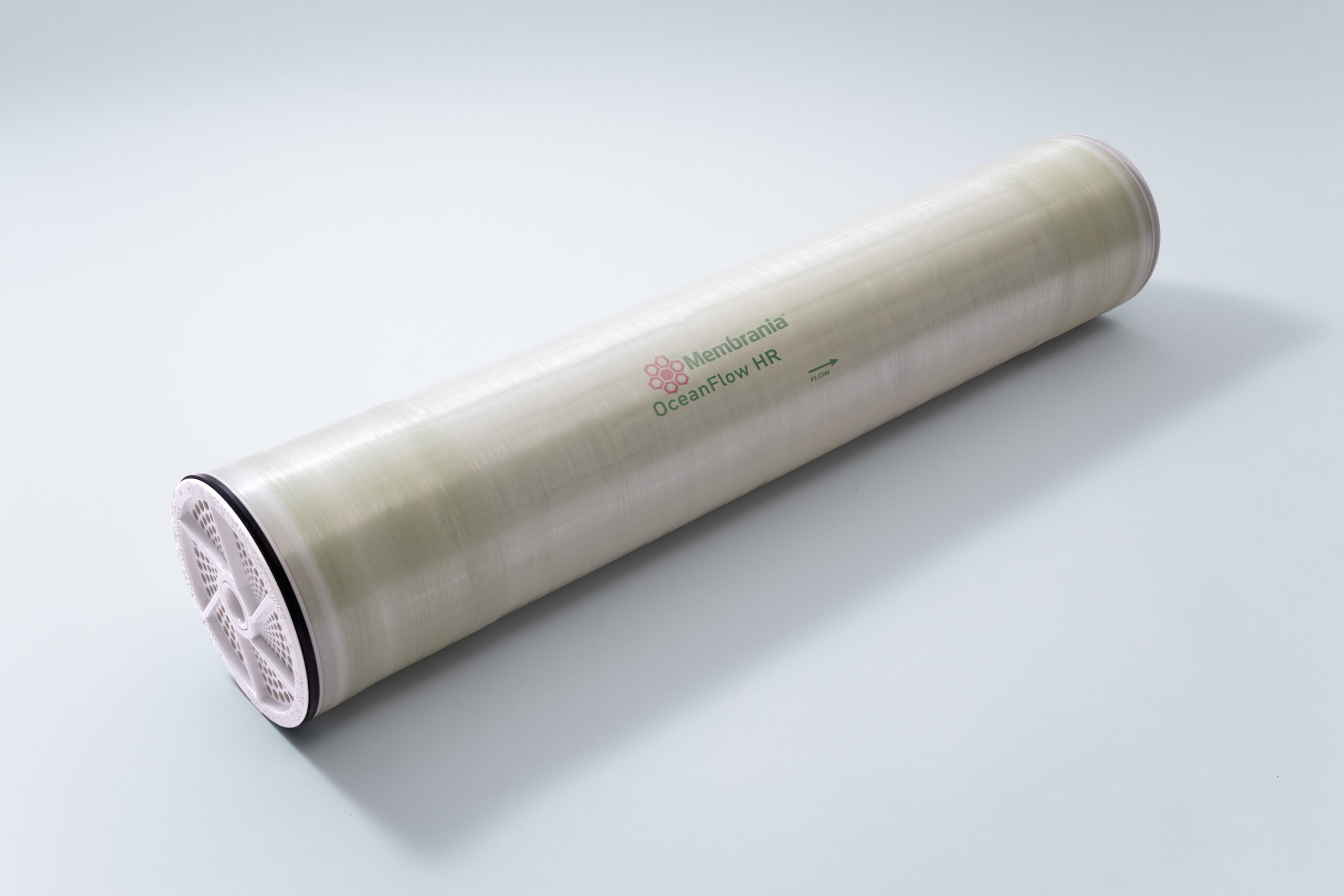

Membrania OceanFlow HR Plus
High Rejection Seawater RO Membrane
The Membrania OceanFlow HR series of seawater reverse osmosis (RO) membranes are designed
to the latest performance and quality standards, it ranks alongside the most advanced membranes on
the market. Available in wide range of spiral wound configurations. Membrania elements cater to both
new installations and replacements, ensuring compatibility with diverse system requiments.
Specifications:
| Permeate Flow: | 6600 gpd / 25m³/day |
| Membrane Area: | 440 ft² / 40,9 m² |
| Salt Rejection: | 99,82% (99,7% minimum) |
| Membrane Chemistry: | Thin-Film Composite Polyamide |
| Construction: | Spiral-Wound Fiberglass Outerwrap |
Operating Parameters:
| Maximum Operating Pressure: | 83 bar (1,200 psi) |
| Maximum Operating Temperature: | 45 °C (113 °F) |
| Cleaning pH Range: | 1.0 12.0 |
| Chlorine Tolerance: | < 0.1 ppm |
| Maximum Pressure Drop: | 1 bar (15 psi) per element |
| Maximum SDI15: | 5.0 |
| Maximum Turbidity: | 1 NTU |
