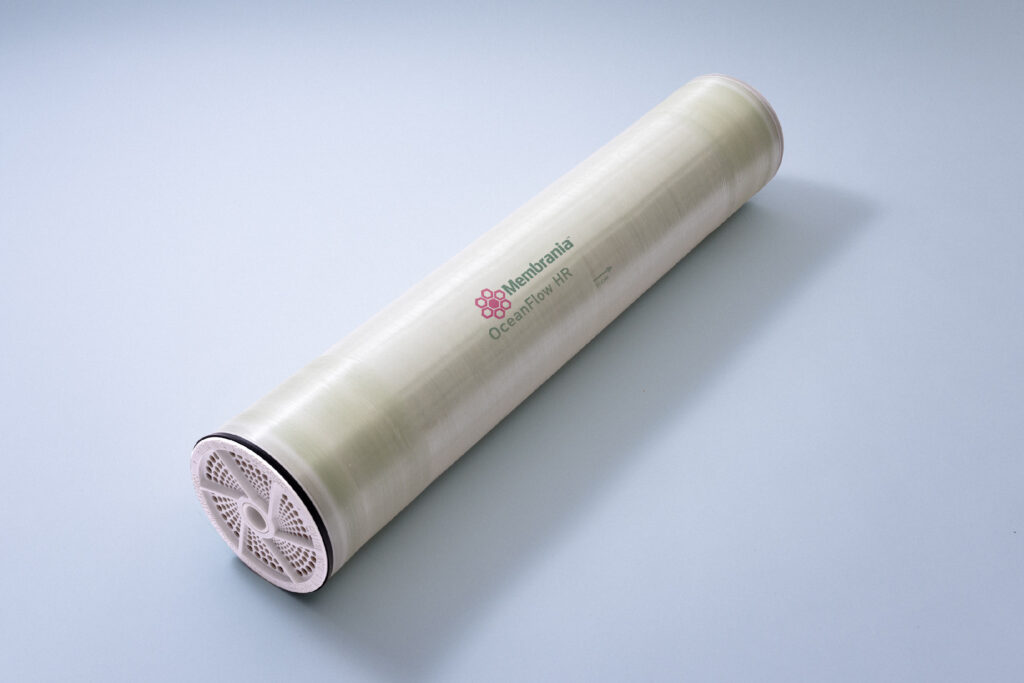

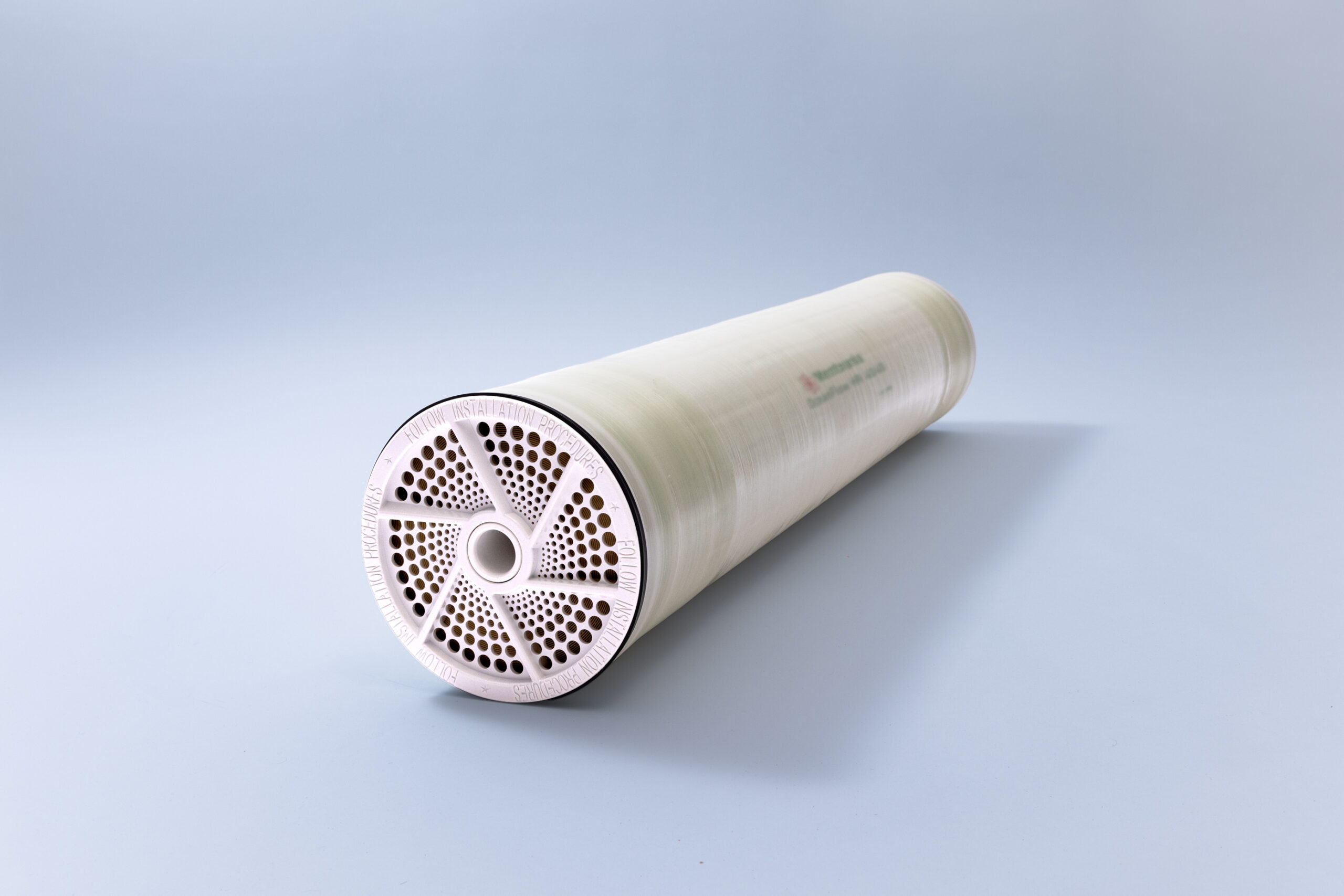

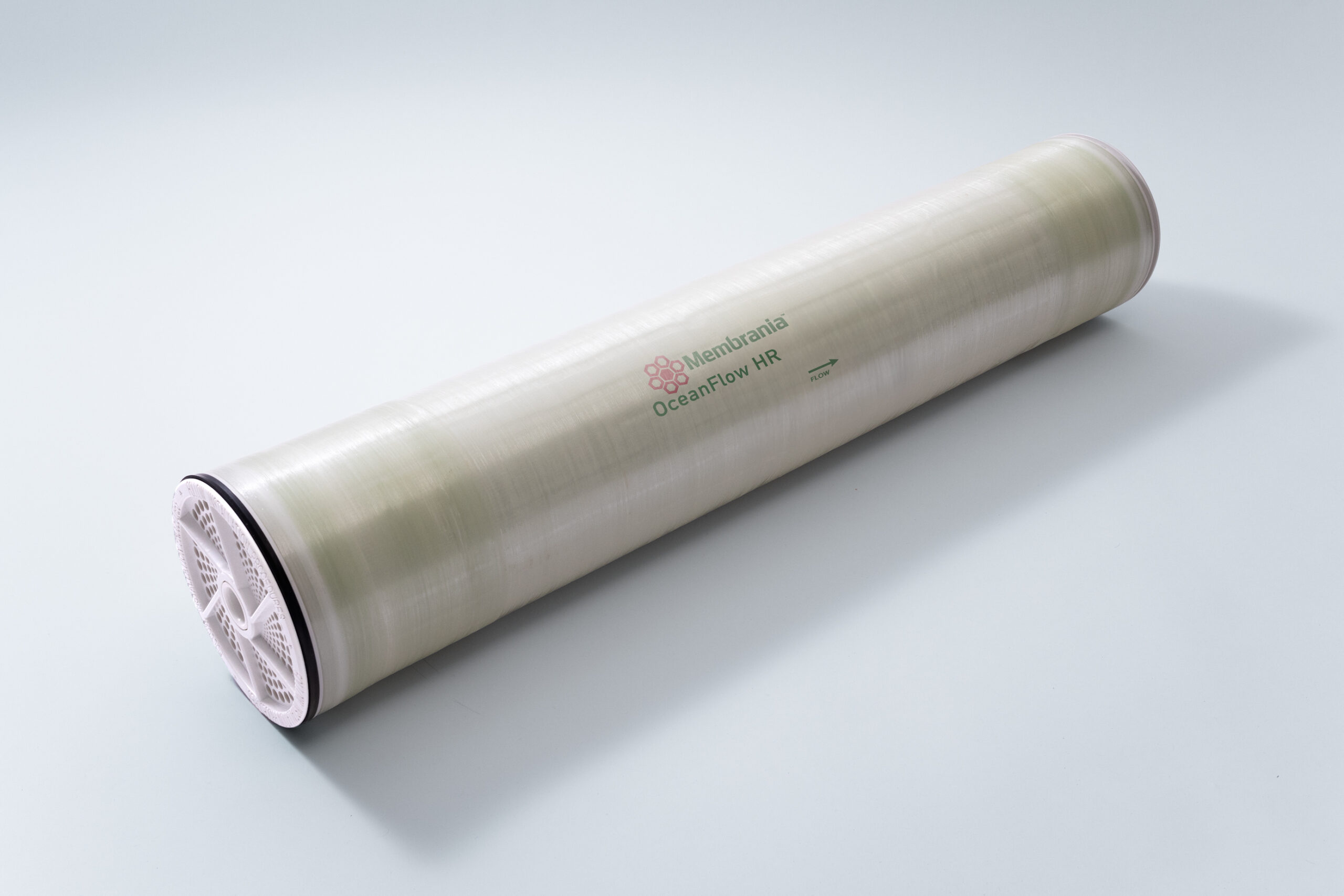

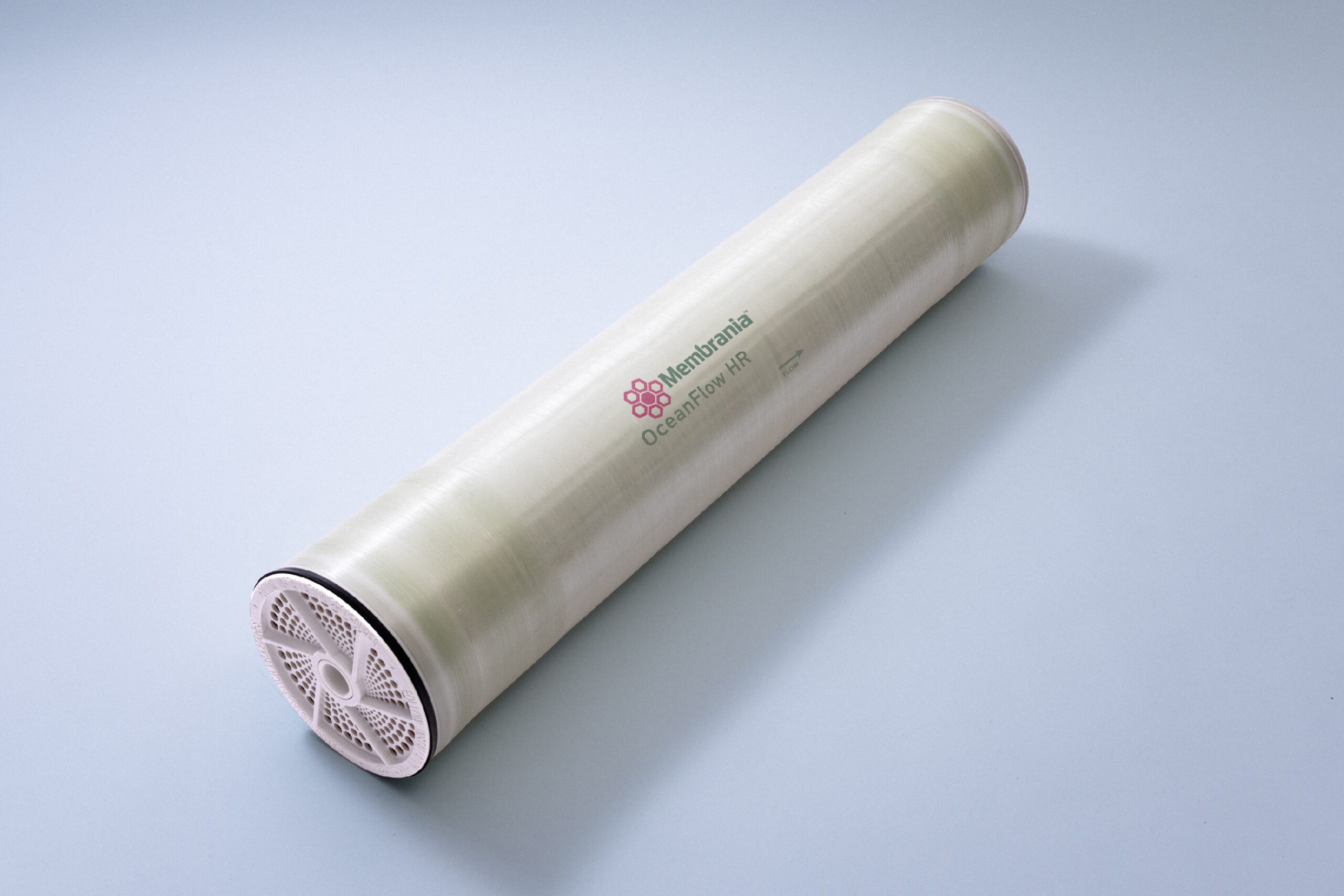

Membrania OceanFlow HR
The Membrania OceanFlow HR series of seawater reverse osmosis (RO) membranes are designed to the latest performance and quality standards, it ranks alongside the most advanced membranes on the market. Available in wide range of spiral wound configurations. Membrania elements cater to both new installations and replacements, ensuring compatibility with diverse system requiments.
Specifications:
| Permeate Flow: | 6000 gpd / 22,7m³/day |
| Membrane Area: | 400 ft² / 37,2 m² |
| Salt Rejection: | 99,8% (99,6% minimum) |
| Membrane Chemistry: | Thin-Film Composite Polyamide |
| Construction: | Spiral-Wound Fiberglass Outerwrap |
Operating Parameters:
| 1 NTU |
Specifications:
| Permeate Flow: | 6000 gpd / 22,7m³/day |
| Membrane Area: | 400 ft² / 37,2 m² |
| Salt Rejection: | 99,8% (99,6% minimum) |
| Membrane Chemistry: | Thin-Film Composite Polyamide |
| Construction: | Spiral-Wound Fiberglass Outerwrap |
Operating Parameters:
| Maximum Operating Pressure: | 83 bar (1,200 psi) |
| Maximum Operating Temperature: | 45 °C (113 °F) |
| Cleaning pH Range: | 1.0 12.0 |
| Chlorine Tolerance: | < 0.1 ppm |
| Maximum Pressure Drop: | 1 bar (15 psi) per element |
| Maximum SDI15: | 5.0 |
| Maximum Turbidity: | 1 NTU |
